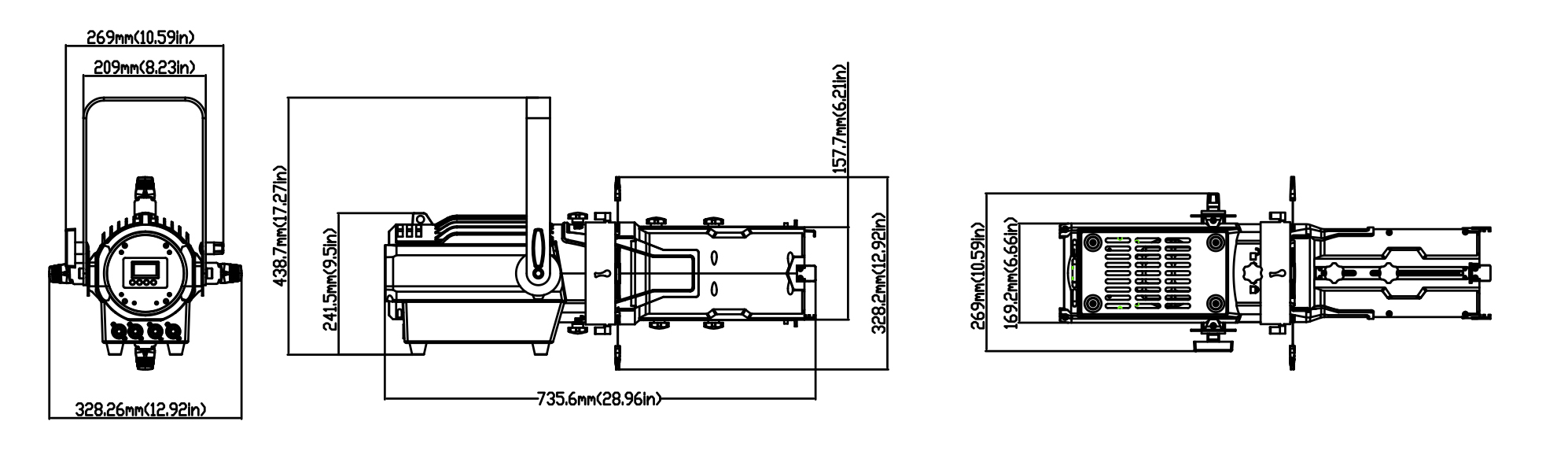

Dimension diagram

Illuminance diagram

optical system
light source: single high-power RGBAL 5-color LED module
LED total power: 500W
LED actual output: 400W
color temperature: 2200K-8000K
"Light source life: 50,000 hours, average light source life *
* Laboratory test conditions may vary depending on various factors"
Color rendering index: up to 95
Optical angle: manual focus 16 ° -36 °; (optional 5 °, 10 °)

effect
dimming : 0-100% linear dimming
Strobe: up to 25Hz
Gamma value: 2.0, 2.2, 2.4, 2.6, 2.8, adapt to different visual linear requirements
Refresh rate: 1,000Hz, 25,000Hz, 32,000Hz, adapt to different camera shutter speeds

protection level
IP20

software
Upgraded via DMX data cable, ultra-quiet fan control
2 channel modes: 9/15 international standard channels

control
RDM protocol

electrical parameters
power supply: AC200-240V, 50/60Hz
whole lamp power: 450W

Dimension weight
Product size: 328x439x736mm
Packaging size (carton): 495x345x315mm
Net weight: 8.5 kg
Gross weight (carton): 10.5 kg
