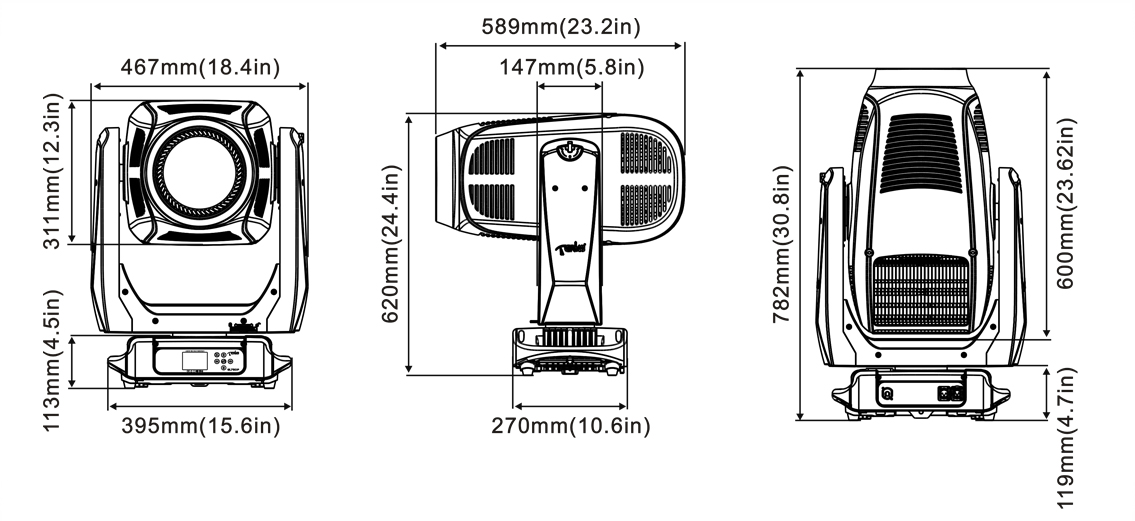

Dimension Chart

Illuminance Chart

Special Effects

Optical System
Light Source: 600W White LED
Color Temperature of Whole Lamp: 6500K ( GL750PH: 6000K)
Light source life: 20000 hours
Color rendering index: Ra ≥ 70 (optional Ra95), GL750PH: Ra ≥ 95, R9 ≥ 90

scan
horizontal scan: 540 ° (16 bit precision scan)
vertical scan: 270 ° (16 bit precision scan)
with automatic error correction Reset function

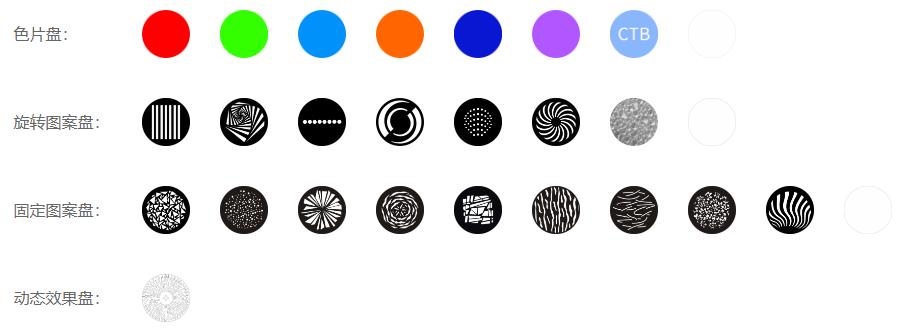

color system
CMY + CTO color mixing system
1 color disc: 7 non-pluggable color plates + white light, rainbow effect with two-way rotation

Pattern system
1 rotating pattern disc: 7 plug-in rotating pattern pieces + white circles, with pattern dithering and pattern arbitrary positioning functions
1 fixed pattern disc: 9 plug-in fixed pattern pieces + white circles
1 dynamic effect disc


effect
Electric focusing
Zoom range: 3.5 ° -53 °
with automatic focusing function
2 prisms: fourth-order linear prism + cone top pentaprism, can be rotated in front and back directions, can be stacked, and has prism positioning function
atomization: light atomization, heavy atomization and light + heavy atomization
Cutting disc: a set of 4 corner slices can be controlled light spot corner cutting system, the entire corner cutting system can be done ± 90 ° rotation
Aperture: 5% -100% linear adjustment
Dimming: 0-100 % Linear dimming
Strobe: up to 25Hz, you can choose random strobe or pulse strobe

Protection level
IP20

display
Display screen: push-button LCD
Reset detection settings: long press the left and right keys to lock the horizontal and vertical scanning reset, which can support the lamp to complete the reset detection in the aircraft case
software
7 Built-in processes to choose from
Upgrade through DMX data cable
Change DMX address code, machine reset and other functions from the console
Display lighting and light source usage time
2 channel modes: 40/62 international standard channels

control
input signal isolation protection function
high temperature automatic protection
can be Select wireless function
RDM protocol

Electrical parameters
Power supply: AC100-240V, 50/60Hz
Whole lamp power: 750W

Size weight
Product size: 467x270x782mm
Net weight: 36kg
